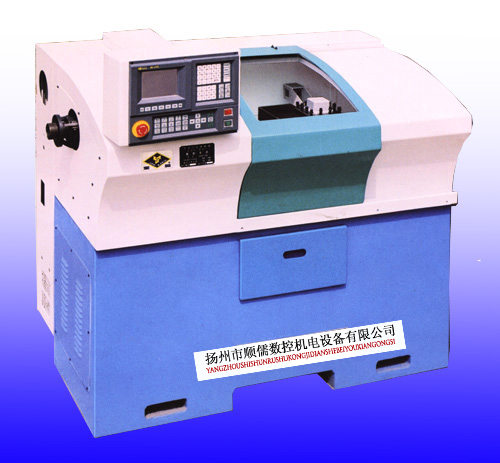

CJK6130

床身上回转直径

Max. swing over bed

㎜

310

大拖板上在转直径

Max. turning diameter over carriage

㎜

135

工件长度

Max. length of workpiece

㎜

350

主轴通孔直径

Spindle bore

r

60

主轴孔锥度

Cone of spindle bore

.

44°

主轴转速范围，无级变速

Spindle speeds, infinitely variable

rpm

120-3000

快速移动速度，X轴
Z轴

Rapid travel speed, X-axis
Z-axis

㎜/min

5000
8000

进给速度，X轴
Z轴

Feedrates,  X-axis
Z-axis

㎜/min

3-2500
6-3000

设定单位，X轴
Z轴

Min. unit to be set, X-axis
Z-axis

㎜

0.005/0.001
0.010/0.005

回转刀架工位数

No. of tool positions of the turret

2 movable toolholders，
4 movable tooiholders(option)

主电机功率

Power of the main drive motor

KW

3KW

机床净重

Net weight

㎏

1200

机床外形尺寸（长×宽×高）

Overall dimensions(L×W×H)

㎜

1500×1100×1500
